Mini CMA Blue
LED transilluminator
Catalog number: CMA002
Description

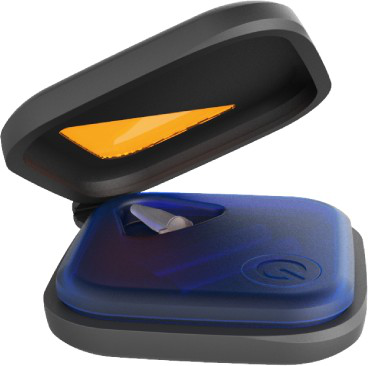

pBLooK™ is a remarkable blue light LED transilluminator (Fig. 1) for nucleic acid detection with non-UV excitation conditions, hence no damage to your DNA fragments. The excitation wavelength of the device is 470 nm, the best excitation condition suitable for most of all commercial fluorescent DNA staining dye. The special designed can inspect the amplification result in tube after PCR reaction. User can observe the signal simultaneously through the amber filter on cover frame.
Accordingly, amaR OnePCR systems would be recommended to use from the initiation step, for the best detection condition.
* Please be noted that pBLooK™ is not suitable for ethidium bromide
Operating
1. Open the Silicon protective lid, and place the PCR product tube on the tube placement area.
2. Close the Silicon protective lid, and press the On/Off button, the fluorescent samples can be viewed through the window.
Note: It is recommended that gloves be worn to prevent skin contact with gel and staining agents
3. Release the On/Off button, and the light will be turn off automatically.
Specifications
Unit dimensions (W × L × H) |
83 mm x 83 mm x 22 mm |
Weight (g) 100 g |
100 g |
Input voltage |
AAA Battery, 1.5V x 3 pieces |
LED source |
Built-in blue light LED module |
LED life (hours) |
>30000 hours |
Emission maxima (nm) |
470 nm |
Store temperature |
25°C |
Operating temperature |
40°C |
Filter type |
Amber filter |
